Single coated tapes
Protective tape for manufacturing processes
This tape can be formed into various shapes. They protect the objects from foreign substances that are generated in manufacturing processes.
-
- Product name
- GPF8100
-
- Features
-
- This product can be supplied in any optional shapes.
- It has excellent heat resistance. Even after a lead-free reflow process (260°C at peak), it can be peeled off without leaving adhesive on the object.

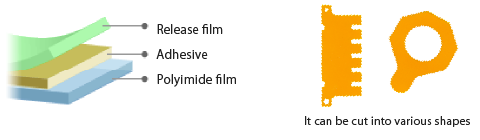

Structure
Specifications
| Product name | GPF8100 |
|---|---|
| Main component | Silicone |
| Carrier | 50-µm thick polyimide |
| Color | Transparent dark brown |
| Adhesive thickness (µm) | Approx. 60 |
| Release film thickness (µm) | Approx. 50 |
| Adhesive strength (N/20mm)* | 0.1 |
- * 180°peel strength test result/using a glass substrate

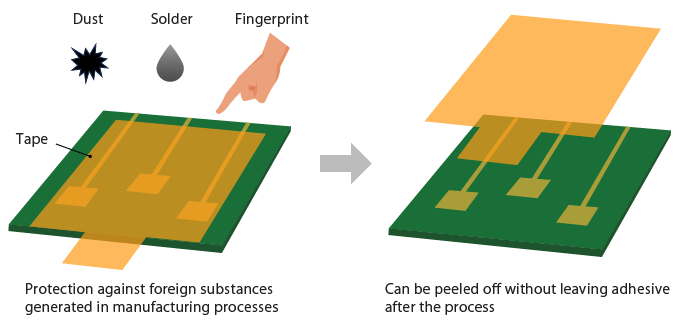

Protection of electronic circuits and masking
caution
Note on the characteristic data given - Data on the characteristics of the products described in this page based on the results of evaluations carried out by the company. This does not guarantee that the characteristics of the product conform with your usage environment. Before use, review the usage conditions based on evaluation data obtained from the equipment and substrates actually used.
