Surface mount fuse

12A PSJ Series Power Current Protector (PCP)

Achieving a compact size of 4.0 × 3.0 × 0.58 mm (the smallest in the PCP series), it is suitable for small and thin mobile devices.

  • Product name
    PSJ-020012A
  • Features
    • With a low profile of 0.58 mm, it is suitable for devices that need to be small and thin.
    • A surface mount fuse to protect electronic devices from overcurrent.
    • Changing some of its constituent materials has caused an entirely lead-free product*to be realized.
      * The European RoHS Directive, which restricts the use of hazardous substances, defines Pb-free as a Pb content of 1,000 ppm or less.

Specifications

Product name PSJ-020012A
Rated current (A) 50
Rated voltage (VDC) 20
Rated breaking capacity (A) 80
Fuse resistance (mΩ) 1.7
Dimension (mm) * 4.0 x 3.0 x 0.58 (see diagram below)
  • UL certified: File No. E167588
    TUV certified: Certificate No. 50384089
    RoHS Directive: Compliant
  • * Values without tolerance indications are nominal values.

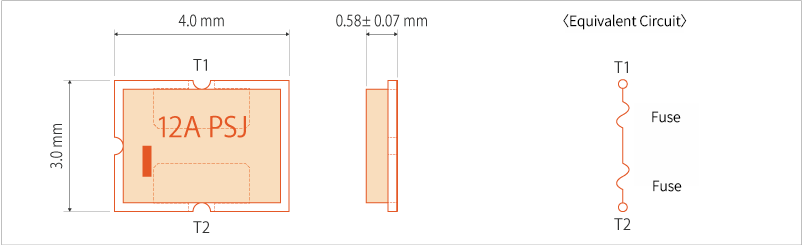

fuse-chart-PSJ-020012A

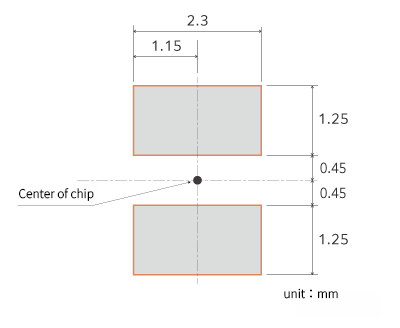

<Recommended land size>

PTA-036100

These are recommended sizes and we can't guarantee the quality of product when mounted.
We recommend our customer to verify if our products could work with your design guidelines.

Application Example

Suitable for notebook PC, cordless power tools, storage batteries, electric power-assisted bicycles, electric motorcycles, and other similar battery powered devices.

caution

Note on the characteristic data given - Data on the characteristics of the products described in this page based on the results of evaluations carried out by the company. This does not guarantee that the characteristics of the product conform with your usage environment. Before use, review the usage conditions based on evaluation data obtained from the equipment and substrates actually used.
