Surface mounted type fuse

Surface mounted type fuse

Product Lineup

Self Control Protector(SCP)

Series SFM SFK SFH SFS SFJ SFR
Dimension (mm) W × D 40.0 × 29.4 9.5 × 5.0 5.4 × 3.2 5.4 × 3.2 4.0 × 3.0 1.8 × 2.7
H 6.0 2.0 1.15 0.9 0.85 0.75
Rated Current 120 A
60A
45 A
30 A
22 A
15 A
12 A
5 A

Power Current Protector(PCP)

Series PTA PSK PSH
Dimension (mm) W × D 7.0 × 5.0 9.5 × 5.0 5.4 × 3.2
H 2.0 2.0 1.2
Rated Current 100A
65 A
35 A

Basic Structure

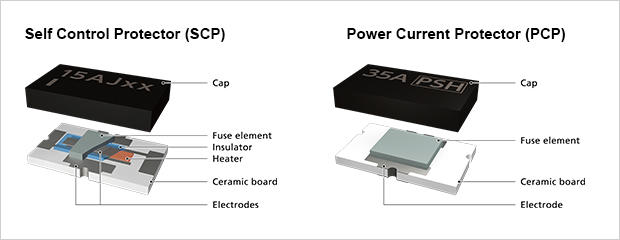

    • The figures above show structures of 15 A (small type) SFJ series and 35 A PSH series.

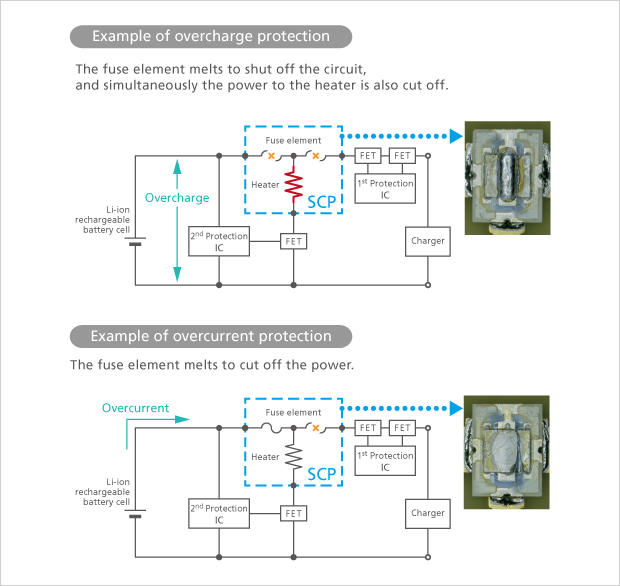

Overcharge and overcurrent protection
