Double coated tapes

Impact resistant double coated tapes

Excellent impact force resistant and waterproof.

  • Product name
    UT2600ML series
  • Features
    • Effective waterproof function by the stress relaxation due to the balloon structure in the core layer.
    • Possible of narrow process corresponding to the thinner smartphone and the narrower frame of the display panels.
    • Excellent workability PET base material specification.



Product name UT2620ML UT2620MLG UT2620MLB
Main component Acrylic Acrylic Acrylic
Color White Gray Black
Adhesive thickness(µm) About 200 About 200 About 200
Release paper thickness(µm) About 150 About 150 About 150
Bonding strength(N/304mm2) *1 175 201 162
Waterproof specification IPX7 IPX7 IPX7
Standard size (width & length) 450mm x 50m 450mm x 50m 450mm x 50m
Warranty period from manufacturing date 12 months 12 months 12 months
  • Available in 50µm increments from thickness 150µm to 300µm. Please contact us for additional information on thickness above.
  • *1Push strength

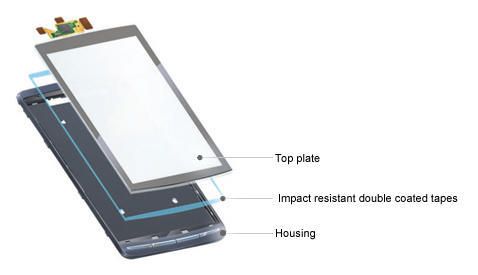

Suitable for bonding the LCD's window frame of mobile devices and the parts in a housing which requires impact resistance and waterproof.

1.Impact resistance (Drop test)

Test Piece condition
Substrate:PC/ABS plate 100mm x 50mm x 2mm
PMMA plate 50mm x 25mm x 2mm
Tape size:1mm x 50mm x 2 (100mm2)
Measuring condition:RT, 0°C

[Drop the sample from 1.5m height, and confirm the sample of delamination.
Left at measurement condition for 1 hour and take a sample out of each condition and drop.]
Drop test Product name RT 0
  • ○:No peeling

2.Waterproof property

Test Piece condition

Substrate:ABS plate 45mm x 65mm x 1mm
PMMA plate 45mm x 65mm x 1mm
Bonding area:40mm x 60mm x 1mm
Measuring condition:Sink in tap water (40°C) and apply pressure (equivalent of 10m depth)

[Judge by water sensing seal. Evaluation level is equivalent of IPX7 or more.]

Waterproof test Product name 30 min. 60 min.

3.Bonding Strength (Push out test)

Test Piece condition

Substrate(1):PC/ABS plate 100mm x 50mm x 5mm (30mm Ф hole)
Substrate(2):Printed glass plate 50mm x 50mm x 3mm
Bonding area :2mm width 40mm x 4pieces
Bonding condition :One stroke with 2kg roller
Measuring condition:RT
Push speed:20mm/min

[Left at RT for 1 hour before measurement.]



Push out test Product name
UT2620ML 175
UT2620MLG 201
UT2620MLB 162


Note on the characteristic data given - Data on the characteristics of the products described in this page based on the results of evaluations carried out by the company. This does not guarantee that the characteristics of the product conform with your usage environment. Before use, review the usage conditions based on evaluation data obtained from the equipment and substrates actually used.
