Thermal conductive sheet

Thermal conductive sheet Silicone Type

Silicone type featuring high thermal conductivity and flexibility that rapidly conveys heat to heat sinks.

  • Product name
    EX30000 series
  • Features
    • Features high thermal conductivity, enabling rapid conveyance of heat to heat sinks.
    • Features low molecular-weight siloxane gas volatility, minimizing the risk of contact fault to components such as substrates even over prolonged periods of usage.
    • Halogen-free with high levels of flame resistance.
    • Moderate hardness realizes high workability.

Product Lineup

Structure

Specifications

Product name EX30050 EX30100 EX30150
Main component Silicone base Silicone base Silicone base
Color Off-white Off-white Off-white
Thickness (mm)*1 About 0.5 About 1.0 About 1.5
Hardness (Asker C) 30 or less 30 or less 30 or less
Heat resistance(°C/W) 1.6 or less 2.0 or less 2.5 or less
Thermal conductivity (W/m·K) 3 3 3
Warranty period from manufacturing date 12 months 12 months 12 months
Product name EX30200 EX30250 EX30400
Main component Silicone base Silicone base Silicone base
Color Off-white Off-white Off-white
Thickness (mm)*1 About 2.0 About 2.5 About 4.0
Hardness (Asker C) 30 or less 30 or less 30 or less
Heat resistance(°C/W) 2.7 or less 3.0 or less 4.8 or less
Thermal conductivity (W/m·K) 3 3 3
Warranty period from manufacturing date 12 months 12 months 12 months
  • UL Certificated EX30050, EX30100, EX30150, EX30200 : File No.E63260 UL94
  • V-1, EX30250, EX30400 : File No.E63260 UL94 V-0
  • *1Release film, excluding only the thickness of the thermal conductive sheet.
    Available in 0.5mm increments from thickness 0.5mm.

Effective in heat conduction for IC chip, LED substrate and power supply.

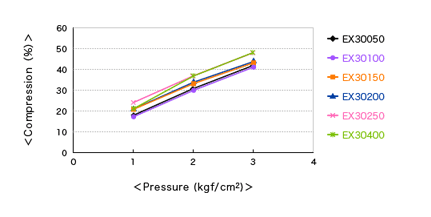

1.Compression at various levels of pressure

Test Piece Condition

Sheet width:15mm x 15mm
Measuring condition:23°C±5°C 60%±20%RH
Setting electric power of heater:7W

Results

2.Thermal resistance at various levels of pressure

Test Piece Condition

Sheet width:15mm x 15mm
Measuring condition:23°C±5°C 60%±20%RH
Setting electric power of heater:7W

Results

caution

Note on the characteristic data given - Data on the characteristics of the products described in this page based on the results of evaluations carried out by the company. This does not guarantee that the characteristics of the product conform with your usage environment. Before use, review the usage conditions based on evaluation data obtained from the equipment and substrates actually used.
