Double coated tapes

Strong adhesive type double coated tapes

Strong adhesive tapes with variation of thickness produced using Green tape ®.

  • Product name
    UT1015BU
  • Features
    • No solvent used at coating process. UV curable manufacturing method.
    • About twice the adhesion strength of our G-series tapes. Suitable for adhesion to plastic or metal parts.
    • Good holding power even at elevated temperature.Can be used in environments of up to 120°C.

Product Lineup

Structure

Specifications

Product name UT1015BU
Main component Acrylic base
Carrier Nonwoven fabric
Color Translucent
Adhesive thickness(µm) About 150
Release paper thickness (µm) About 130
Bonding strength(N/20mm) *1 27
St'd size(width & length) 480mm x 50m
Warranty period from manufacturing date 12 months
  • UL certificated. UL file No:( UL969 No.MH15431)
  • *190° peeling strength

Application Example

For sites where thickness is limited and high adhesive strength is reguired. Ideal for bonding names plates and front panels.

Technical Data

1.Bonding strength on various type of substrate (90° peeling)

90° peeling strength test

Test Piece condition

Tape width:20mm
Bonding condition:One stroke with 2-kg roller
Measuring condition:23°C±5°C 60%±20%RH
Peeling speed:300mm/min
Backing material:40µm aluminum foil

[Left at RT for one day before measurement]

Results

(N/20mm)

90° peeling strength Product name Substrate
SUS Steel Aluminum Copper ABS PC Acrylic
UT1015BU 27.2 28.0 16.8 27.7 12.6 14.0 16.0

2.Holding power at different temperatures

Holding power test

Test Piece condition
Substrate:Stainless steel plate (SUS304)
Bonding area:25mm x 25mm
Bonding condition:One stroke with 2-kg roller
Backing material:40µm aluminum foil

[Left at RT for one hour and then at each temperature for 30 minutes before measurement]
[Creep length after one-hour application of 1-kg load]
Results
Creep length (mm) Product name Measurement temperature
40°C 80°C 120°C
UT1015BU 0.2 0.8 1.0

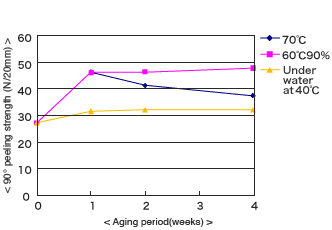

3.Reliability of bonding strength under different conditions (90° peeling)

90° peeling strength test

Test Piece condition
Substrate:Stainless steel plate (SUS304)
Tape width:20mm
Bonding condition:One stroke with 2-kg roller
Peeling speed:300mm/min
Backing material:40µm aluminum foil

[Measures after four hours or more neglect to RT after aging]
Results

(N/20mm)

90° peeling strength Measuring condition Eapsed time
Initial 1week 2weeks 4weeks
Heat resistance 70°C 27.2 46.4 41.2 37.5
Heat & moisture resistance 60°C95%RH 27.2 46.1 46.4 47.8
Water resistance Under water at 40°C 27.2 31.4 31.9 31.9


caution

Note on the characteristic data given - Data on the characteristics of the products described in this page based on the results of evaluations carried out by the company. This does not guarantee that the characteristics of the product conform with your usage environment. Before use, review the usage conditions based on evaluation data obtained from the equipment and substrates actually used.
